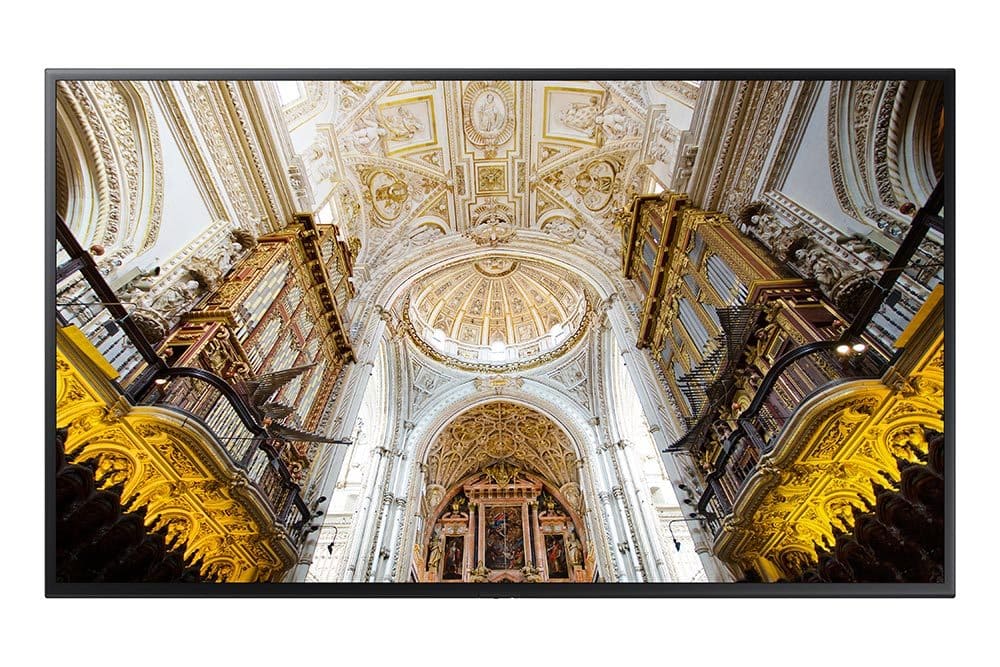

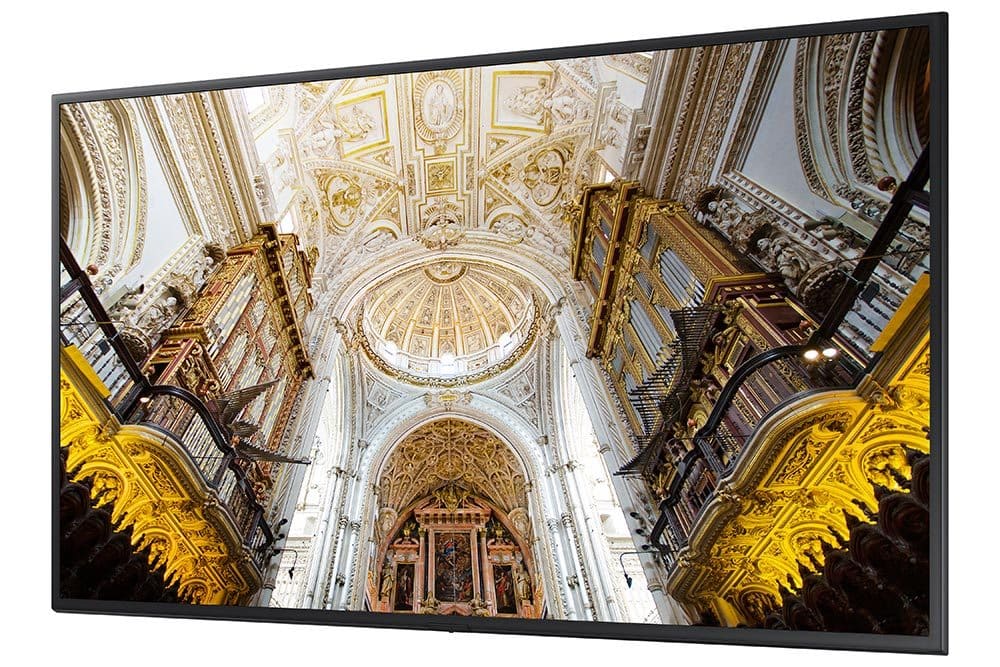

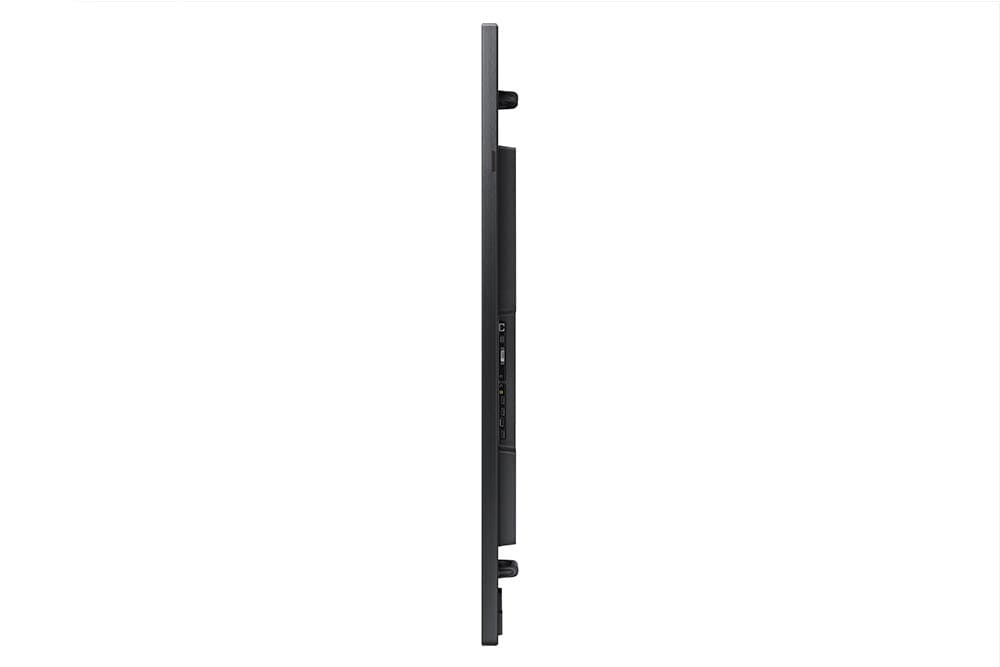

Samsung seria QMN, ecrane profesionale

Samsung seria QMN, ecrane profesionale

Samsung seria QMN, ecrane profesionale

  • ecrane profesionale digital signage UHD
  • media player intern
  • luminozitate medie -500 nit (cd/mp)
  • funcționare 24/7
  • sistem de operare Tizen 4.0 (VDLinux)

Additional information

Boxe

Built in Speaker(10W 10W)

Contrast

4000:1

Tip

60Hz E-LED BLU

Rezolutie

3840*2160 (4K UHD)

Pixelpitchmm

0.187 x 0.562

Zona display activ

2158.848(H) x 1214.352(V)

Luminozitate

500 nit

Unghi de vizibilitate

178/178

Timp de raspuns

6ms(Typ.)

Culori display

16.7M(True Display) 1.07B(Ditherd 10bit)

Color gamut

72%

Timp de operare

N/A

Haze

25%

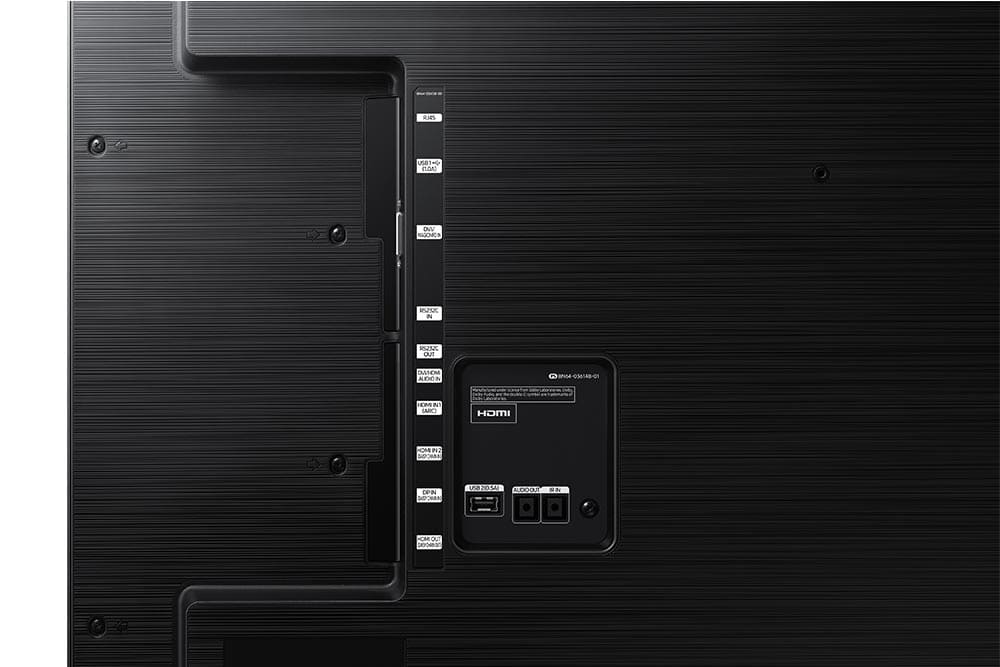

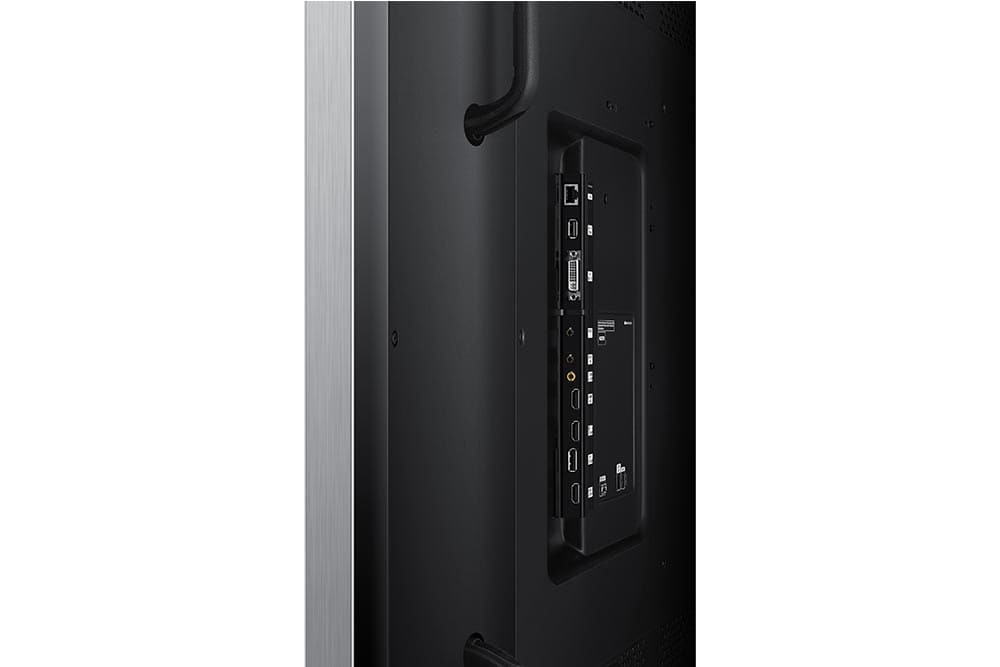

Video

HDMI 2.0 (2)

Hdcp

HDCP 2.2

Usb

USB 2.0 x 2

Audio

Stereo mini Jack, DVI, HDMI

Sursa de alimentare

AC 100 – 240 V~ ( /- 10 %), 50/60 Hz

Maxw h

528

Tipic

372

Ratingw h

480

Repaus

0.5

Dimensiune produs

2194.2 x 1249.8 x 71.6 (w/o handle) 2194.2 x 1249.8 x 75.3 (w/ handle)

Greutate produs kg

77.1

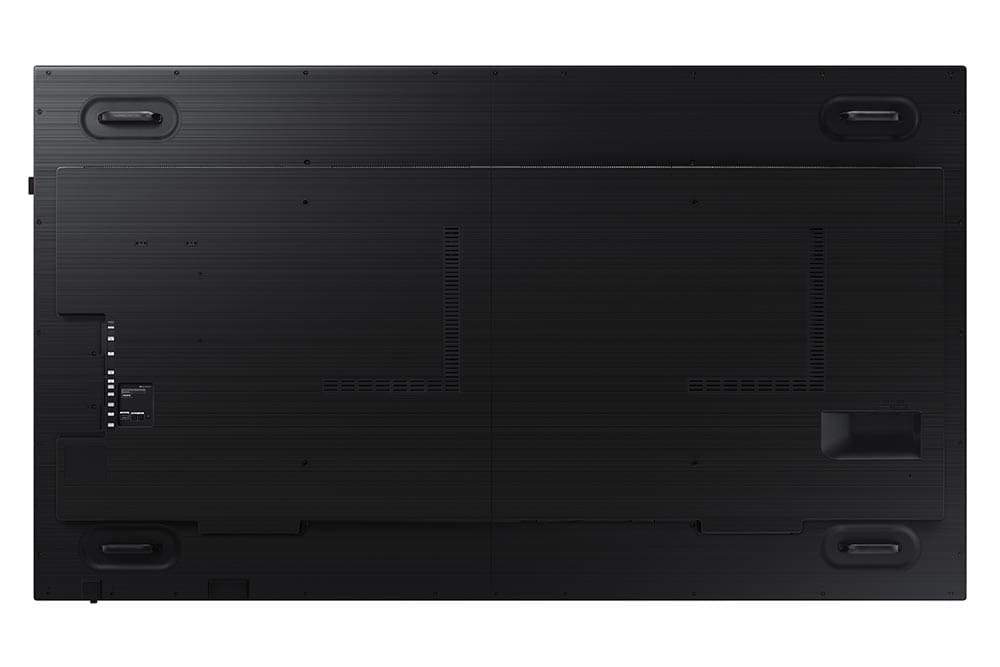

Vesa mount mm

900 X 600

Tip suport

No

Latime rama

15.2/15.2/15.2

Caracteristici cheie

UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0

Caracteristici speciale

QMN

Procesor

Cortex A72 1.7GHz Quad-Core CPU

Memorie cache

L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB

Clock speed

1.7GHz

Memorie interfata

2.5GB LPDDR4 1.5GHz 64bit

Memorie stocare

8GB (3.88GB Occupied by O/S, 4.12GB Available)

Multimedia

*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS , HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG

Porturi i o

USB 2.0

Sistem de operare

Tizen 4.0 (VDLinux)

Siguranta

60950-1

Emc

Class A

Speciale

N/A

Media player ext

N/A

H scanning frequency

30 ~ 81kHZ

V scanning frequency

48 ~ 75HZ

Maximum pixel frequency

594MHz

Temperatura

0 ℃ ~ 40 ℃

Umiditate

10 % ~ 80 %

Diagonala

43'', 49'', 55'', 65'', 75'', 85'', 98''

Rgb

DVI-D, Display Port 1.2 (1), HDMI 2.0 (Loop-out)

Senzor extern

IR

Whether for a retailer promoting new sales or a transportation hub keeping travelers on schedule, clear information delivery drives success. Samsung’s QMN Series help businesses achieve these goals through compelling UHD picture quality, extensive connectivity and ongoing 24/7 performance.

Deliver Clear Messaging that Resonates

Share Intelligent, High-Quality Content

Intelligent Picture Quality

The QMN Series displays leverage Samsung’s Intelligent Picture Quality technology to elevate content delivery in any setting. This refined presentation transforms content from any source to UHD-level quality, and optimizes on-screen text and imagery with crisp edges and fine detail.

Share Intelligent, High-Quality Content

Streamline Operational Efficiency

The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the displays overall performance, allows for painless content management and ensures seamless content transition and playback.

Streamline Operational Efficiency

Empower Secure and Remote Collaboration

Samsung’s KNOX platform provides rigid three-layer protection while also securing and controlling USB and user network exchange through dedicated signage device management. With added security, businesses can facilitate remote, PC-free meetings without risk or complexity.

Empower Secure and Remote Collaboration

Maintain Continuous Display Performance

Beyond security and content management, QMN Series users can trust the displays’ remote management for fast, efficient issue mitigation. Users can monitor and diagnose irregularities – both on their own and with help from Samsung’s 24/7 Network Operations Center – from any location.

Maintain Continuous Display Performance

Accelerate Multi-Screen Content Delivery

For added flexibility, the QMN Series offers users HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source. Additionally, users can configure UHD daisy chains up to 2×2 in size through the HDMI 2.0 port.

Accelerate Multi-Screen Content Delivery
